A lamp of negligible dimensions is fixed to the ceiling of a room whose ceiling height is 3 m. An opaque disk with a
diameter of 20 cm is suspended 75 cm below the ceiling, so that its faces are horizontal and its center lies on the
same vertical line as the lamp. Calculate the area of the shadow projected by the disk onto the floor of the room.
Problem data:
- Disk diameter: y = 20 cm;
- Distance between the disk and the lamp: p = 75 cm;
- Distance between the shadow and the lamp: q = 3 m.

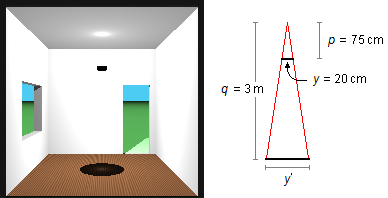

Problem diagram:
Solution:
First, we must convert the room height given in meters (m) into centimeters (cm), instead of converting all the
other units into meters, as is usually done.
\[
\begin{gather}
q=3\;\mathrm m=3\times(100\;\mathrm{cm})=300\;\mathrm{cm}
\end{gather}
\]
To calculate the area of the shadow, we must first calculate its diameter. This is obtained from the equation
\[
\begin{gather}
\bbox[background:#99CCFF; padding:10px; border-radius:10px;] {\frac{y'}{y}=\frac{q}{p}}
\end{gather}
\]
\[
\begin{gather}
\frac{y'}{20}=\frac{300}{75} \\[5pt]
y'=\frac{20\times 300}{75} \\[5pt]
y'=\frac{6000}{75} \\[5pt]
y'=80\;\mathrm{cm}
\end{gather}
\]
The radius of the shadow is half its diameter.
\[
\begin{gather}
r=\frac{y'}{2} \\[5pt]
r=\frac{80}{2} \\[5pt]
r=40\;\mathrm{cm}
\end{gather}
\]
The area of a circle is given by
\[
\begin{gather}
\bbox[background:#99CCFF; padding:10px; border-radius:10px;] {A=\pi r^2}
\end{gather}
\]
taking π = 3.14, the area of the shadow will be
\[
\begin{gather}
A=3.14\times 40^2 \\[5pt]
A=3.14\times 1600
\end{gather}
\]
\[
\begin{gather}
\bbox[background:#FFCCCC; padding:10px; border-radius:10px;]
{A=5024\;\mathrm{cm}^2}
\end{gather}
\]
